M27 Signal

HUMMEL’s M27 signal connectors are available as 26- and 28-pole variants in cable, coupler and panel connector versions.

The connection system fulfils the protection class IP67 (when locked) and works reliably within a temperature range of -40°C to +125°C Celsius.

M27 Signal cable connector

Housing type	Cable
Material housing	Copper-Zinc alloy
Material housing surface	Nickel

Seal type	O-Ring
Temperature range	-40°C to +125°C
Protection class	IP 67

Version	Shield	Cable ?	Item-No
Screw	unshielded	7 – 12 mm	7.110.500.000
Screw	unshielded	11 – 17 mm	7.110.600.000

M27 Signal coupler connector

Housing type	Coupler
Material housing	Copper-Zinc alloy
Material housing surface	Nickel

Temperature range	-40°C to +125°C
Protection class	IP 67

Version	Shield	Cable ?	Item-No
Screw	unshielded	7 – 12 mm	7.210.500.000
Screw	unshielded	11 – 17 mm	7.210.600.000

M27 Signal panel connector

Material housing	Copper-Zinc alloy
Material housing surface	Nickel
Seal type	O-Ring

Material seals/o-rings	NBR
Protection class	IP 67, IP 69 K
Temperature range	-40°C to +125°C

Version	Shield	Item-No
with vibration protection	unshielded	7.410.700.000

M27 Signal inserts

M27 Signal inserts – 26-pole
M27 Signal inserts – 28-pole

M27 Signal contacts

	Crimp contact	Crimp range	Item-No

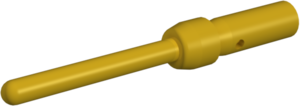

	Crimp pin signal 1 mm machined	0.14 – 0.56 mm2	7.010.971.001

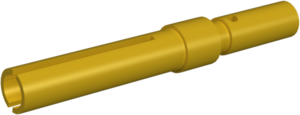

	Crimp socket signal 1 mm machined	0.14 – 0.56 mm2	7.010.971.002

M27 Signal accessories

	Debion	Suitable for	Item-No
	Crimp tool	M23 Hybrid, M23 Power, M23 Power INOX, M27 Signal	7.000.900.901
	Crimp tool	M16, M16 INOX, M23 Signal, M23 Signal INOX, M27 Signal	7.000.900.904
	Protection cap	Circular connector with external thread, M27 Signal	7.000.980.167
	Protection cap	Circular connector with internal thread, M27 Signal	7.000.980.168
	Assembly tool	M27 Signal	7.010.900.110
	Protection cap with chain	Circular connector with internal thread, M27 Signal	7.010.9S0.707
	Protection cap with chain	Circular connector with external thread, M27 Signal	7.010.9S0.708
