Hummel航空連接器（M23 Signal cable connector）

數量(只) 價格
1 1.00元/只
  • 最小起訂： 1只
  • 發貨地址： 上海 浦東新區
  • 發布日期：2025-05-12
  • 訪問量：82
咨詢電話：138-1877-2521
打電話時請告知是在機電之家網上看到獲取更多優惠。謝謝！
第2年

上海頤品自動化科技有限公司

實名認證 企業認證
  • 聯系人：張凱文
  • 手機：13818772521
  • 電話：021-60486851
  • 營業執照：已審核 營業執照
  • 經營模式： 生產加工-私營有限責任公司
  • 所在地區：上海 浦東新區
  • 家家通積分：12884分
添加微信好友

掃一掃，添加微信好友

詳細參數
品牌Hummel型號齊全
加工定制否材質金屬
耐溫耐高溫型阻燃性一般
執行質量標準歐標產地其他
顏色其他

產品詳情

德國胡默爾Hummel航空連接器（M23 Signal cable connector）
Hummel連接器代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）
關鍵詞：胡默爾Hummel尼龍電纜接頭，胡默爾Hummel黃銅鍍鎳電纜接頭，胡默爾Hummel不銹鋼電纜接頭
胡默爾Hummel屏蔽型電纜接頭，胡默爾Hummel防爆型電纜接頭，德國胡默爾Hummel防爆格蘭密封接頭
胡默爾Hummel尼龍悶蓋，胡默爾Hummel黃銅鍍鎳堵頭，胡默爾Hummel不銹鋼堵頭/變徑接頭/防爆堵頭
胡默爾Hummel連接器，胡默爾Hummel接線盒，胡默爾Hummel航空插頭，胡默爾Hummel尼龍軟管接頭

Hummel Circular connectors- 胡默爾Hummel航空連接器
Hummel電纜接頭代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）
Hummel Circular connectors，上海頤品自動化科技有限公司(Hummel代理商)

Hummel Circular connectors（Hummel圓形連接器）

Hummel連接器代理商：上海頤品自動化科技有限公司（EPIN AUTOMATION）


M23 Signal

Numerous casing designs and great variety characterise the connection system M23.

These universally deployable connectors convince with their sturdiness and reliability.

The M23 is also available as screw plug, with TWILOCK quick release system,

or in the TWILOCK-S version, which is intermateable with Speedtec.



M23 Signal cable connector

Housing type Cable
Material housing brass,
Zinc Die Cast
Material housing surface Nickel
Material seals/o-rings NBR
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K
Version
Shield
Cable ?
Item-No
Screw shielded 3 – 7 mm 7.106.400.000
Screw shielded 7 – 12 mm 7.106.500.000
Screw shielded 11 – 17 mm 7.106.600.000
TWILOCK shielded 3 – 7 mm 7.166.400.000
TWILOCK-S shielded 3 – 7 mm 7.166.400.00S
TWILOCK shielded 7 – 12 mm 7.166.500.000
TWILOCK-S shielded 7 – 12 mm 7.166.500.00S
TWILOCK shielded 11 – 17 mm 7.166.600.000
TWILOCK-S shielded 11 – 17 mm 7.166.600.00S



M23 Signal coupler connector

Housing type Coupler
Material housing brass,
Zinc Die Cast
Material housing surface Nickel
Material seals/o-rings NBR
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K
Version
Shield
Cable ?
Item-No
Screw shielded 3 – 7 mm 7.206.400.000
Screw shielded 7 – 12 mm 7.206.500.000
Screw shielded 11 – 17 mm 7.206.600.000
TWILOCK-S shielded 3 – 7 mm 7.266.400.00S
TWILOCK-S shielded 7 – 12 mm 7.266.500.00S
TWILOCK-S shielded 11 – 17 mm 7.266.600.00S


M23 Signal panel connector

Housing type Panel angled
Material housing Zinc Die Cast,
Copper-Zinc alloy,
brass
Material housing surface Nickel,
blue passivated
Seal type O-Ring
Material seals/o-rings FKM (FPM),
NBR
Protection class IP 67,
IP 69 K
Temperature range -40°C to +125°C

Installation type
Version
Shield
Cable ?
Item-No
Front wall Standard unshielded - 7.400.000.000
Front wall Standard unshielded - 7.402.000.000
Front wall TWILOCK, with vibration protection unshielded - 7.410.000.000
Front wall TWILOCK-S unshielded - 7.410.000.00S
Front wall TWILOCK-S unshielded - 7.410.100.00S
Front wall TWILOCK, with vibration protection unshielded - 7.412.000.000
Front wall TWILOCK, with vibration protection unshielded - 7.414.000.000
Front wall TWILOCK, with vibration protection unshielded - 7.416.000.000
Front wall for pin inserts unshielded - 7.420.000.000
Front wall for socket inserts unshielded - 7.421.000.000
Front wall for pin inserts unshielded - 7.422.000.000
Front wall for socket inserts unshielded - 7.423.000.000
Front wall - unshielded - 7.425.000.000
- right angled unshielded - 7.431.000.000
- right angled unshielded - 7.435.000.000
- right angled, TWILOCK unshielded - 7.439.000.000
- right angled, TWILOCK-S unshielded - 7.439.000.00S
- right angled unshielded - 7.439.000.010
- right angled, TWILOCK unshielded - 7.439.100.000
- right angled, TWILOCK-S unshielded - 7.439.100.00S
- right angled unshielded - 7.439.100.010
Front wall with knbed nut unshielded - 7.440.000.000
Front wall with knbed nut unshielded - 7.444.000.000
Front wall with knbed nut unshielded - 7.448.000.000
Front wall with knbed nut unshielded - 7.449.000.000
Rear wall - unshielded - 7.452.000.000
Rear wall TWILOCK unshielded - 7.458.000.000
Rear wall TWILOCK-S unshielded - 7.458.000.00S
Rear wall with knbed nut unshielded - 7.459.000.000
Rear wall with vibration protection unshielded - 7.460.000.000
Rear wall with vibration protection unshielded - 7.462.000.000
Rear wall TWILOCK-S, with vibration protection unshielded - 7.462.000.00S
Rear wall with vibration protection unshielded - 7.464.000.000
Rear wall with vibration protection unshielded - 7.466.000.000
Rear wall - shielded 3 – 7 mm 7.476.400.000
Rear wall - shielded 7 – 12 mm 7.476.500.000
Rear wall - shielded 11 – 17 mm 7.476.600.000
Rear wall - shielded 3 – 7 mm 7.486.400.000
- TWILOCK-S shielded 3 – 7 mm 7.486.400.00S
Rear wall - shielded 7 – 12 mm 7.486.500.000
- TWILOCK-S shielded 7 – 12 mm 7.486.500.00S
Rear wall - shielded 11 – 17 mm 7.486.600.000
- TWILOCK-S shielded 11 – 17 mm 7.486.600.00S
- with vibration protection unshielded - 7.490.000.000
- with vibration protection unshielded - 7.491.000.000

M23 Signal right angle cable connector

Material housing brass,
Zinc Die Cast
Material housing surface Nickel
Material seals/o-rings NBR
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K
Shield
Cable ?
Item-No
unshielded 3 – 7 mm 7.300.300.000
unshielded 5 – 10 mm 7.300.400.000
unshielded 7 – 12 mm 7.300.500.000
unshielded 10 – 14 mm 7.300.600.000
shielded 7 – 12 mm 7.301.500.000
shielded 11 – 17 mm 7.301.600.000
shielded 7 – 12 mm 7.306.500.000
shielded 11 – 17 mm 7.306.600.000

M23 Signal INOX housing


M23 Signal INOX cable connector

Housing type Cable
Material housing Stainless steel 1.4404 (AISI 316)
Material seals/o-rings FKM (FPM)
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K
Version
Shield
Cable ?
Item-No
Screw 5 – 10 mm 7.140.400.000
Screw 7 – 12 mm 7.140.500.000
Screw shielded 3 – 7 mm 7.141.300.000
Screw shielded 5 – 10 mm 7.141.400.000
Screw shielded 7 – 12 mm 7.141.500.000
Screw shielded 10 – 14 mm 7.141.600.000



M23 Signal INOX coupler connector

Housing type Coupler
Material housing Stainless steel 1.4404 (AISI 316)
Material seals/o-rings FKM (FPM)
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K
Version
Shield
Cable ?
Item-No
Screw 10 – 14 mm 7.240.600.000
Screw shielded 3 – 7 mm 7.241.300.000
Screw shielded 5 – 10 mm 7.241.400.000
Screw shielded 7 – 12 mm 7.241.500.000
Screw shielded 10 – 14 mm 7.241.600.000


M23 Signal INOX panel connector

Material housing Stainless steel 1.4404 (AISI 316)
Material seals/o-rings FKM (FPM)
Temperature range -40°C to +125°C
Protection class IP 67,
IP 69 K
Version
Shield
Item-No
with vibration protection unshielded 7.410.400.000
for pin inserts unshielded 7.420.400.000
for socket inserts unshielded 7.421.400.000
right angled unshielded 7.430.400.000


M23 Signal inserts

M23 Signal inserts – 6-pole
M23 Signal inserts – 7-pole
M23 Signal inserts – 9-pole
M23 Signal inserts – 12-pole
M23 Signal inserts – 16-pole
M23 Signal inserts – 17-pole
M23 Signal inserts – 19-pole

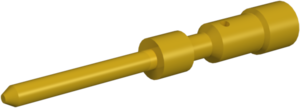

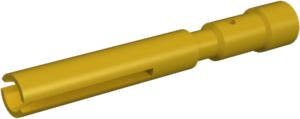

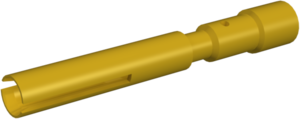

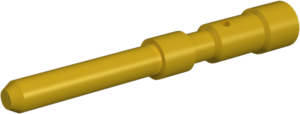

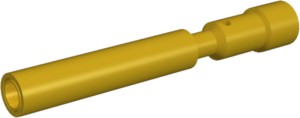

M23 Signal contacts

Crimp contact
Crimp range
Item-No
M23 Signal contacts Crimp pin signal 1 mm machined 0.14 – 1 mm2 7.010.901.001
M23 Signal contacts Crimp socket signal 1 mm machined 0.34 – 1 mm2 7.010.901.002
M23 Signal contacts Crimp socket signal 1 mm machined 0.08 – 0.56 mm2 7.010.901.012
M23 Signal contacts Crimp pin signal 1 mm machined 0.75 – 1.5 mm2 7.010.901.021
M23 Signal contacts Crimp socket signal 1 mm machined 0.75 – 1.5 mm2 7.010.901.022
M23 Signal contacts Crimp pin signal 1 mm machined 0.08 – 0.56 mm2 7.010.901.031
M23 Signal contacts Crimp pin signal 1,5 mm machined 0.14 – 1 mm2 7.010.901.501
M23 Signal contacts Crimp socket signal 1,5 mm machined 0.56 – 1 mm2 7.010.901.502
M23 Signal contacts Crimp socket signal 1,5 mm machined 0.14 – 0.56 mm2 7.010.901.512
M23 Signal contacts Crimp pin signal 2 mm machined 0.75 – 2.5 mm2 7.010.902.001
M23 Signal contacts Crimp socket signal 2 mm machined 0.75 – 2.5 mm2 7.010.902.002


Moulded circular connectors

All cable and coupling connectors of the standard series are also available as overmolded versions -

in straight or angled design. Overmolded solutions are manufactured according to customer specifications.

The cable type and length are specified in mutual technical agreement.

  • M8, M12, M16, M23 and M40
  • Overmoulding in various colours possible
  • Manipulation protection
  • Straight and angled designs
  • Shielded or unshielded


M23 Signal accessories
